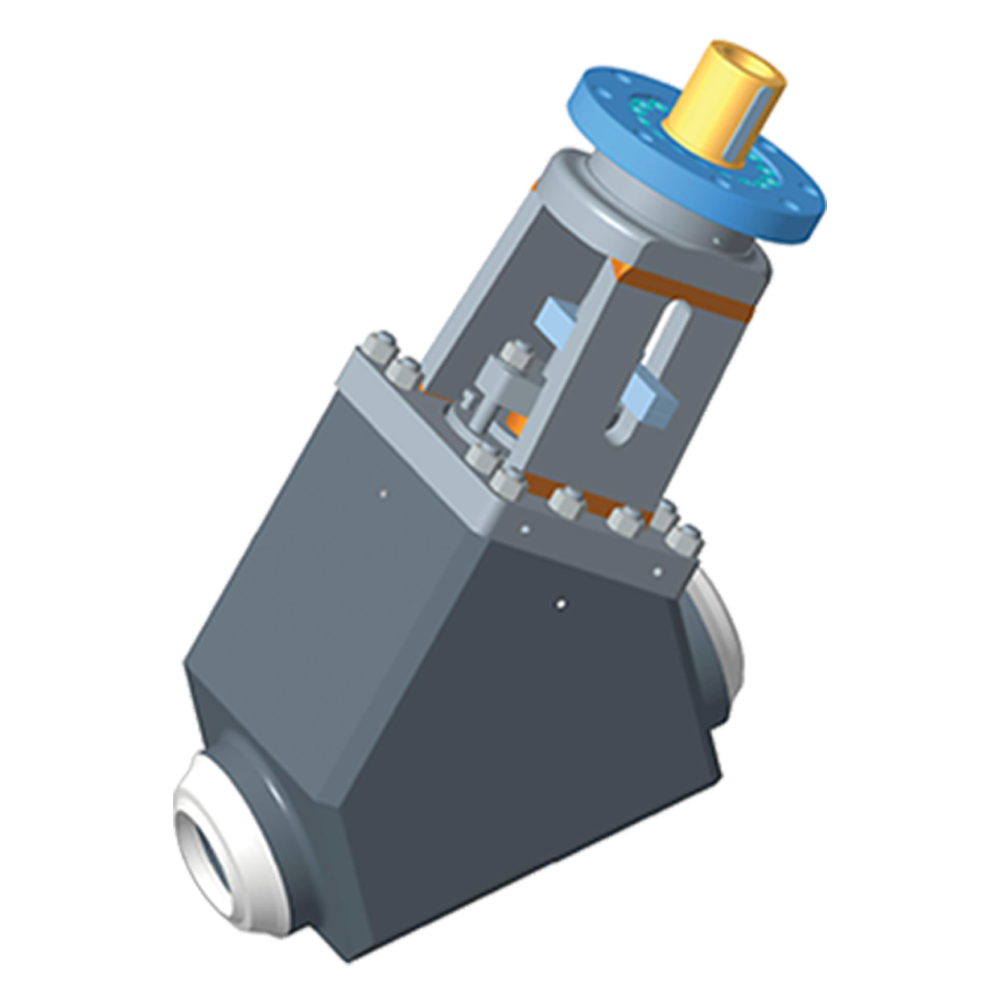

Sempell Raisteam High Pressure Globe Valve

Forged high pressure Y pattern, T pattern and angle pattern globe valves

主要功能

Forged body materials of highest quality, all in compliance with ASME and DIN standards.
Globe valves designed as per ASME B16.34, API 600, ISO, DIN, TRD, VGB, TRB, PED.
CE mark 100% Compliance with European Pressure Equipment Directive n°2014/68/EU.
“T”, “Y” and angle patterns available.
Packing with pure graphite pressed rings, with a minimum density of 1.8 g/cm3 each, to improve its sealing effectiveness and, at the same time, to decrease the risk for fugitive emissions.
Mechanical position indicator supplied as standard.
Yoke equipped with connecting flange on top to facilitate gear operator assembly.
Special constructions and materials available.
Valves are offered as standard with manual operators (Hand wheel or bevel gear depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
