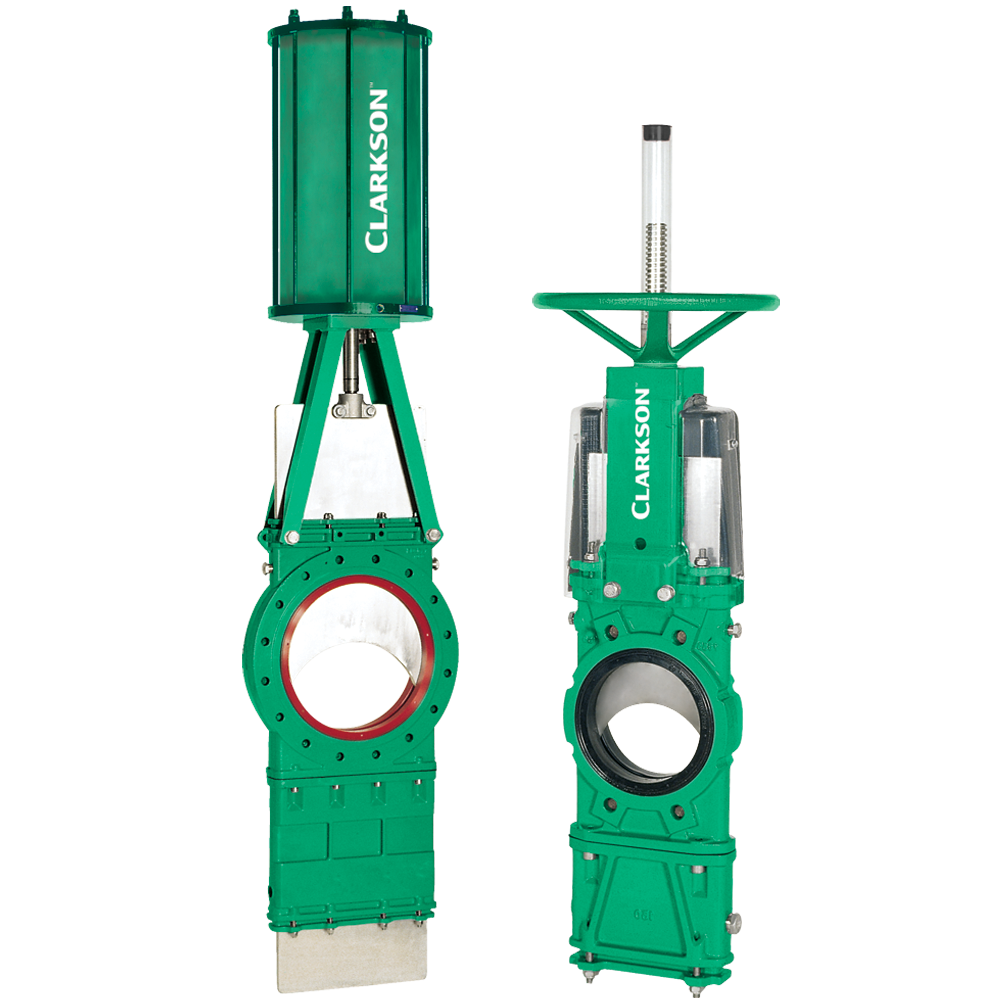

Clarkson F956 Dual Gland Ported Slide Gate Valve

Dual gland ported slide configuration improves performance in abrasive, corrosive and scaling service conditions.

A bi-directional dual gland ported slide gate valve for abrasive, corrosive and scaling applications.

主要功能

Bi-directional sealing capabilities.
Minimal flushing required with dual glands.
A choice of both full bore models and reduced bore polyurethane seated versions matched to lined pipe bores.
Dual hardness reinforced elastomer seats to minimize wear and provide energized gate seal.
Rilsan (Nylon 11) coating on all wetted components and upstand.
Flushing ports provided as standard.
Semi-energized glands to minimize periodic adjustment.
Stainless steel fasteners used throughout as standard.
Body shrouds and spindle cover provided as standard.
Maintenance friendly replaceable seat with integral flange gasket.
Designed to comply with MSS SP-81.
A range of seat options available.
